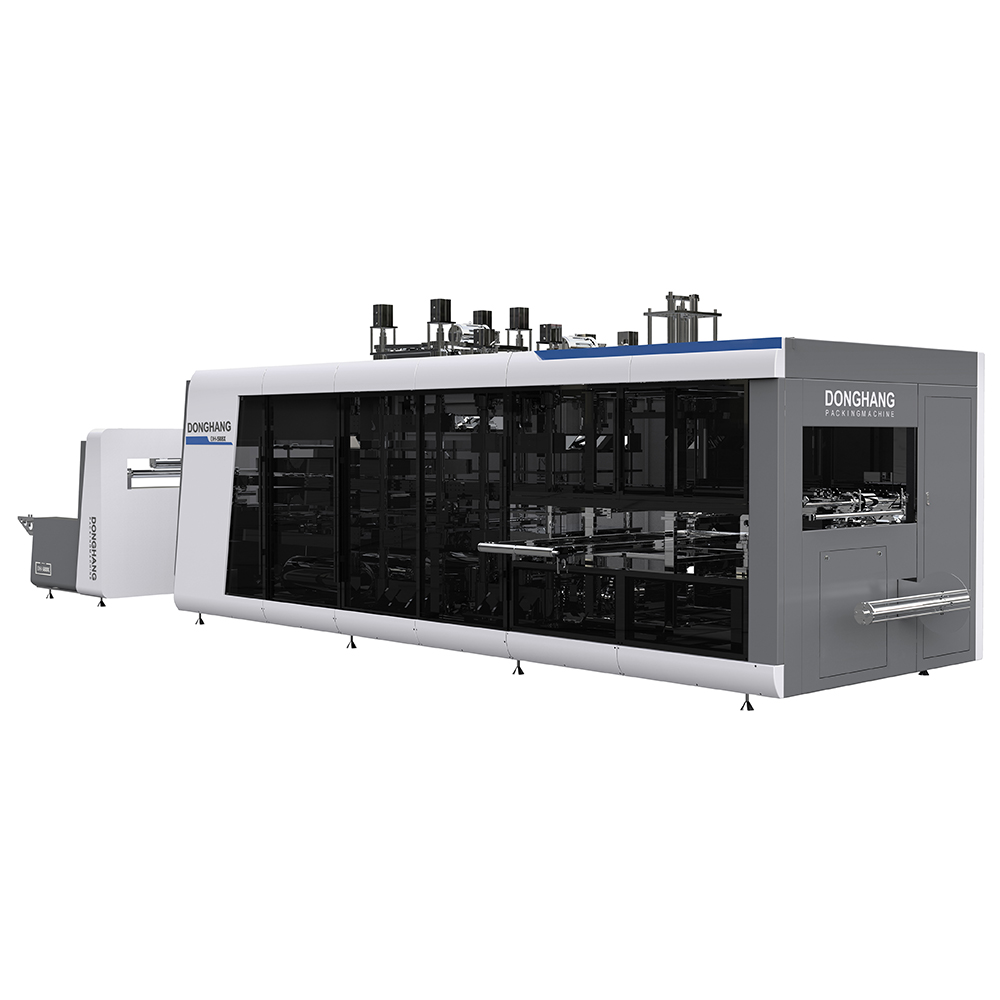

全自动三四工位塑料热成型机

  • 所属分类:成型机
  • 浏览次数:336次
  • 发布日期:2026/5/11 10:30:57
  • 产品描述
  • 产品参数

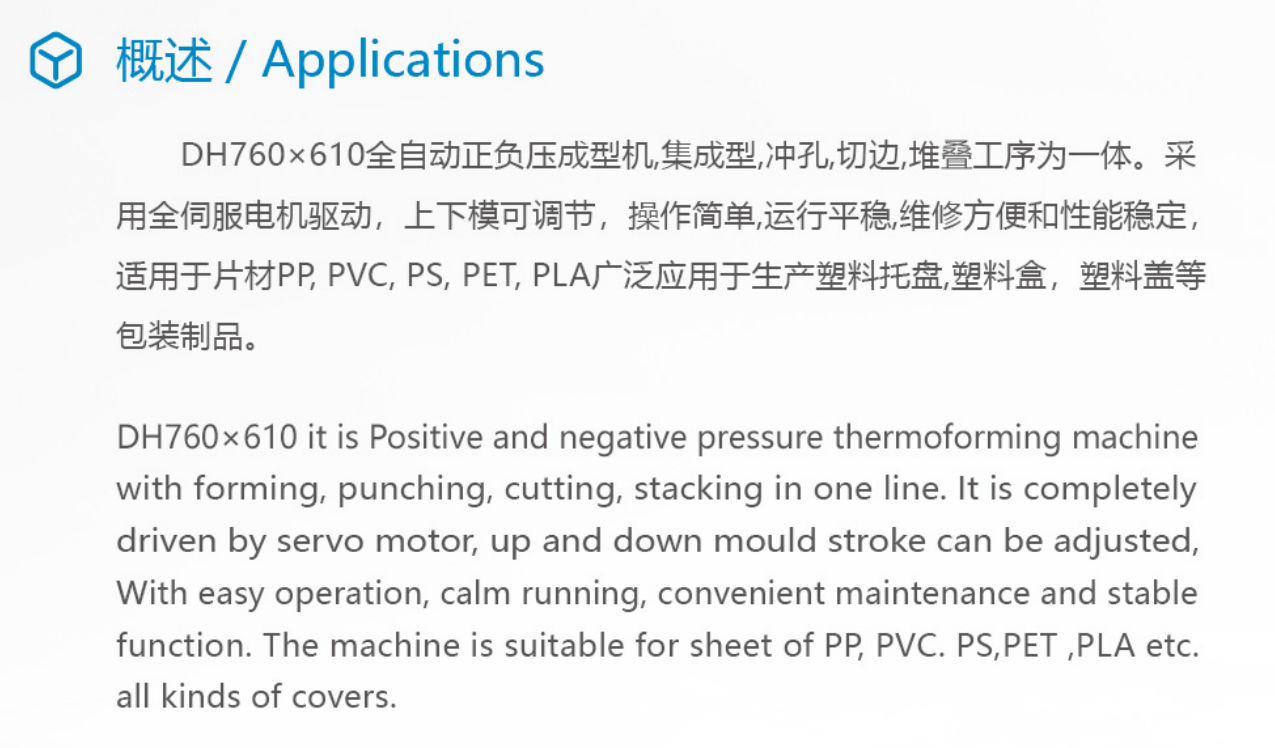

概述/ Applications

DH760×610全自动正负压成型机,集成型,冲孔,切边,堆叠工序为一体。采用全伺服电机驱动,上下模可调节,操作简单,运行平稳,维修方便和性能稳定,适用于片材PP, PVC, PS, PET, PLA广泛应用于生产塑料托盘,塑料盒,塑料盖等包装制品。

DH760×610 it is Positive and negative pressure thermoforming machine with forming, punching, cutting, stacking in one line. It is completely driven by servo motor, up and down mould stroke can be adjusted,With easy operation, calm running, convenient maintenance and stable function. The machine is suitable for sheet of PP, PVC. PS,PET ,PLA etc.all kinds of covers.

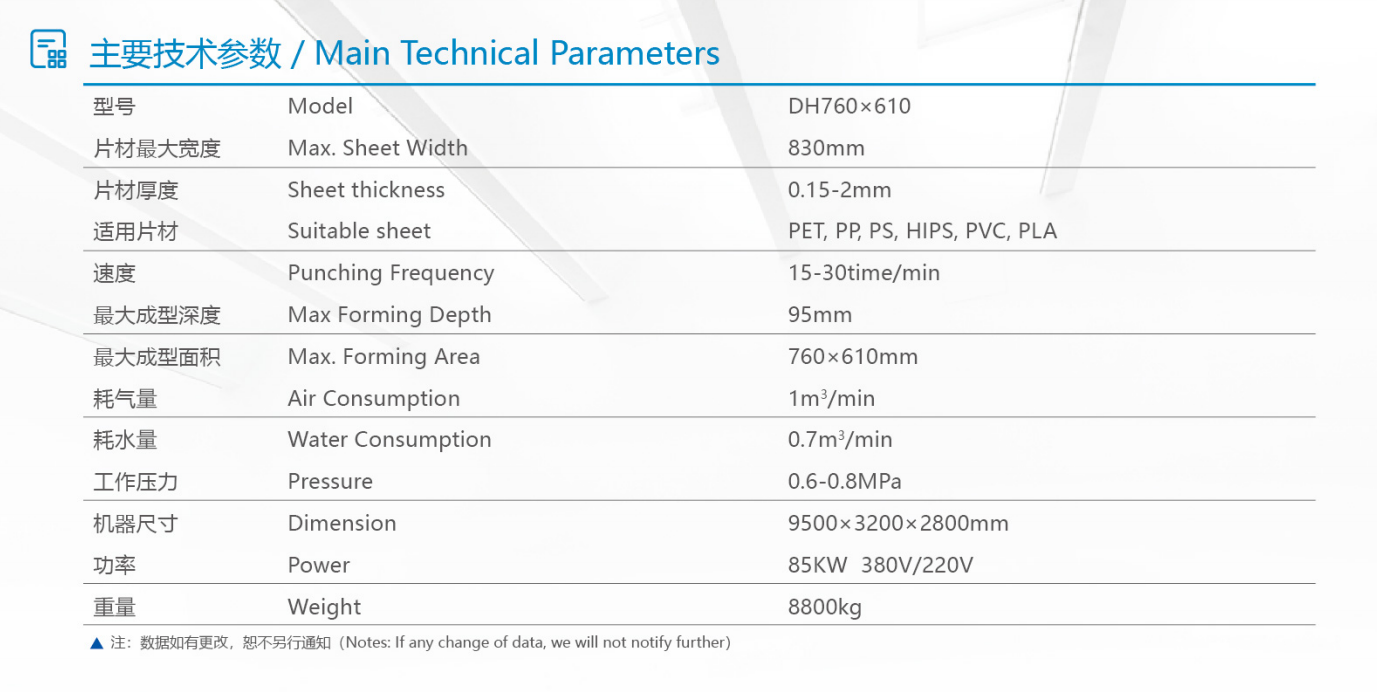

主要技术参数/ Main Technical Parameters

型号

Model

DH760×610

片材最大宽度

Max. Sheet Width

830mm

片材厚度

Sheet thickness

0.15-2mm

适用片材

Suitable sheet

PET, PP, PS, HIPS, PVC, PLA

速度

Punching Frequency

15-30time/ min

最大成型深度

Max Forming Depth

95mm

最大成型面积

Max. Forming Area

760×610mm

耗气量

Air Consumption

1m³/ min

耗水量

Water Consumption

0.7m³/ min

工作压力

Pressure

0.6-0.8MPa

机器尺寸

Dimension

9500×3200×2800mm

功率

Power

85KW 380V/220V

重量

Weight

8800kg

:数据如有更改,恕不另行通知 (Notes: If any change of data, we will not notify further)
